Explore our comprehensive product range to discover the ideal solution for your needs. From cutting-edge technology to sleek accessories, we offer innovative options to meet your requirements.

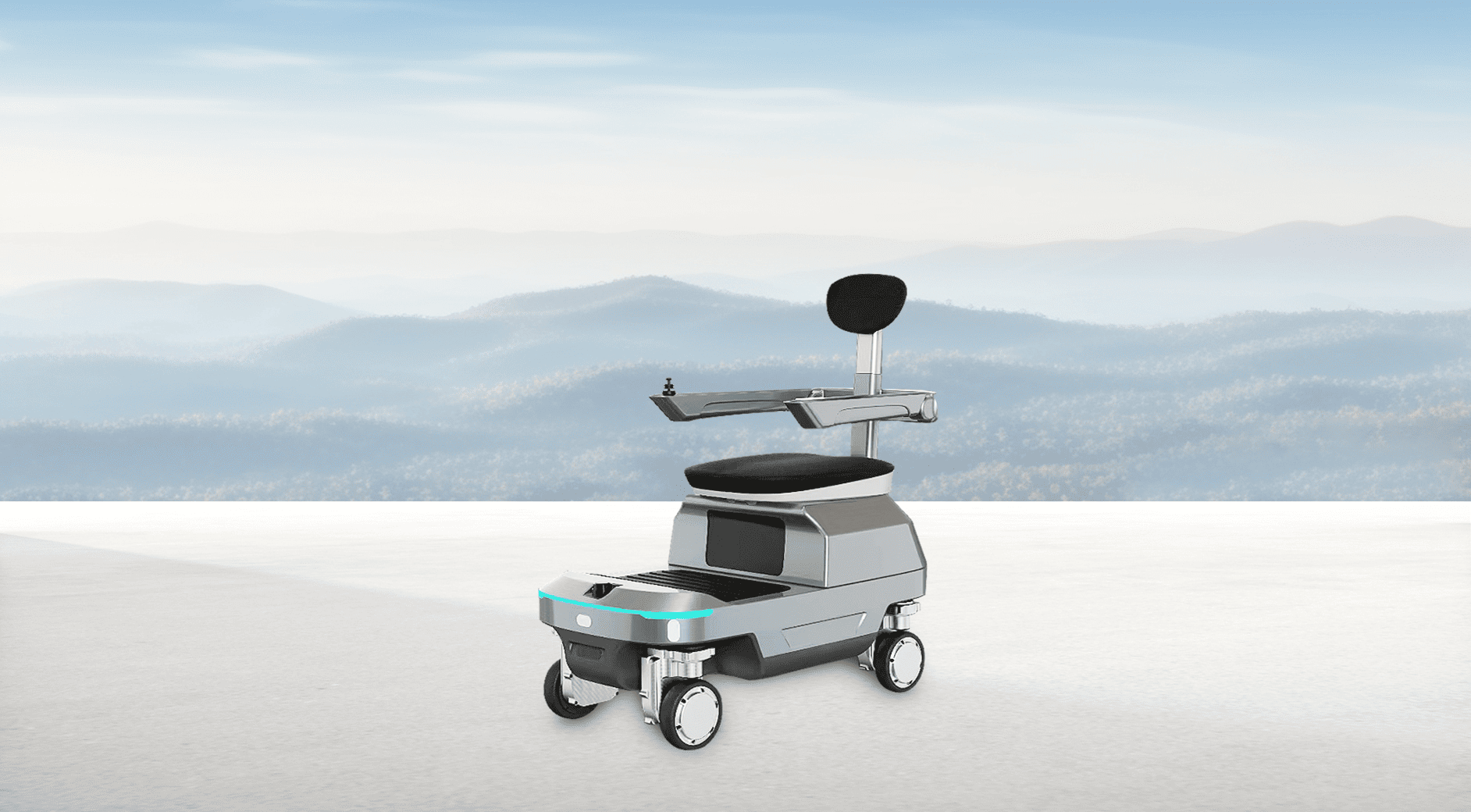

Build a platform using Modular Mobility, customized for your application and as quick to deploy as an off-the-shelf robot.

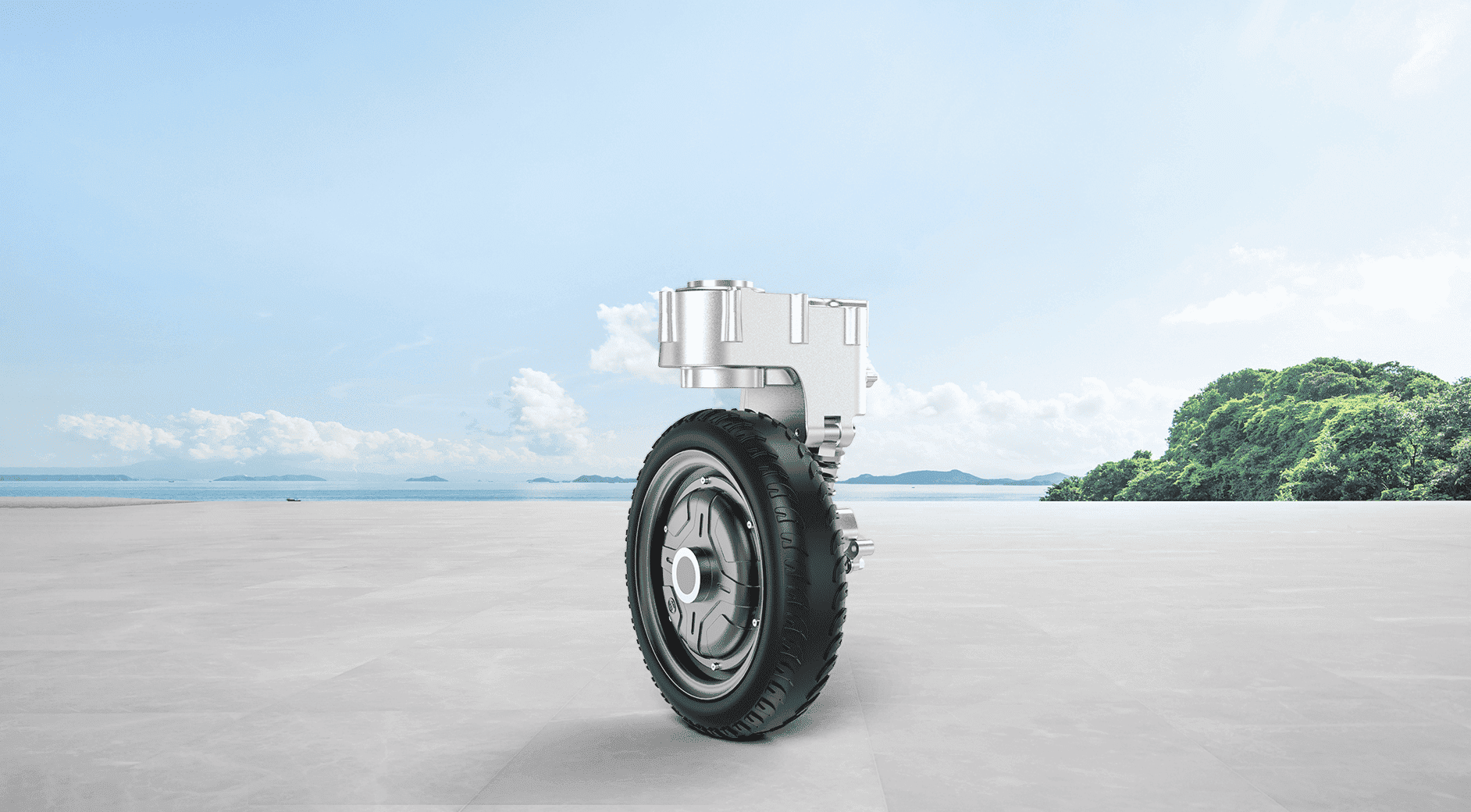

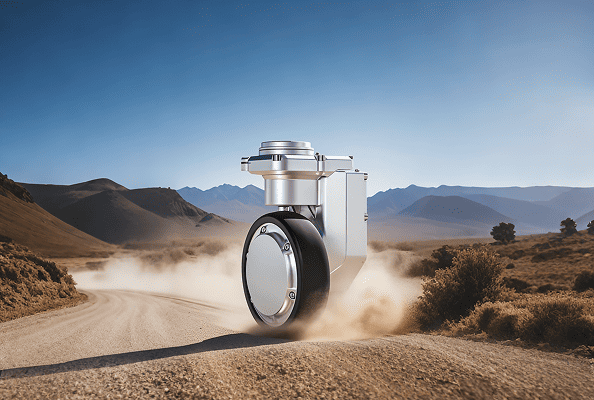

WHEELS: Our advanced wheels provide versatile motion, speed, and load capacity for various terrains.CONTROLLER: Our technology offers efficient motion control and power management, seamlessly integrated at an affordable price.FRAMES: Modular Mobility features a robust, flexible exoskeletal frame for customized mobile robot platforms.DESIGN: Design any mobile platform risk-free with our modular systems.

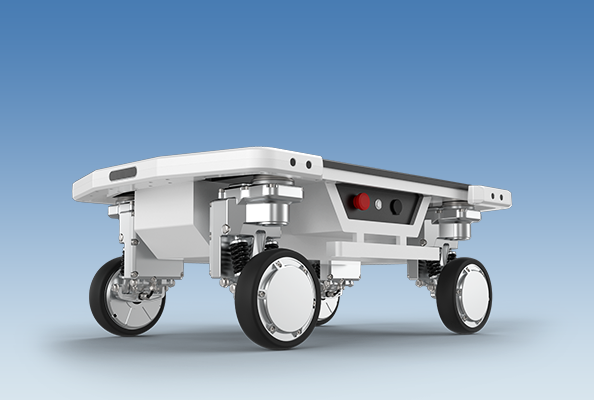

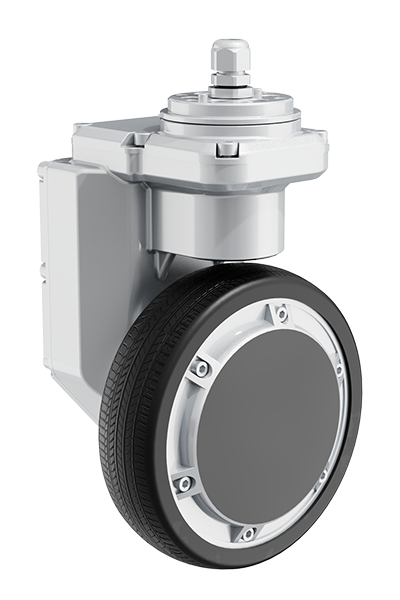

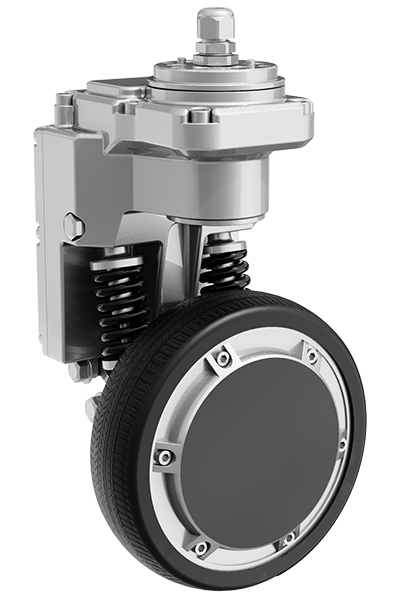

| Parameters | K50 | K200 |
|---|---|---|
| Dimensions (L×W×H) | 132×165×250.2 mm | 167×304.8×467.5 mm |
| Weight | 5.3 kg | 15 kg |
| Load Capacity (Single Corner Module) | 50 kg | 200 kg |
| Operating Temperature Range | -20°C to 50°C | -20°C to 50°C |
| Tire Size | 6.5 inches | 12 inches |
| Maximum Climbing Angle | 15° | 25° |
| Speed Range | 0-8 km/h (adjustable) | 0-25 km/h (adjustable) |

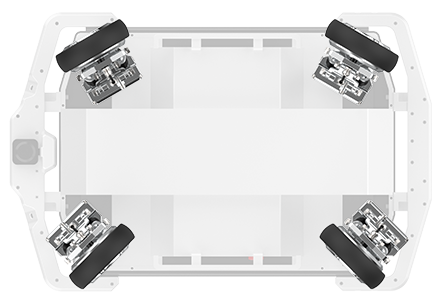

| Steering Angle | ±90° | ±90° |

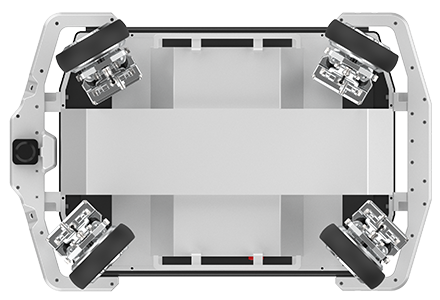

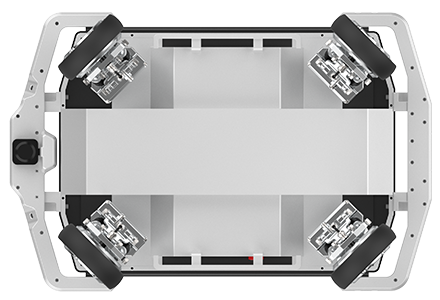

| Minimum Turning Radius | 0 m | 0 m |
| Ackermann Steering | Supported | Supported |

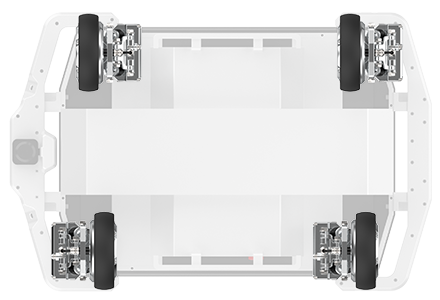

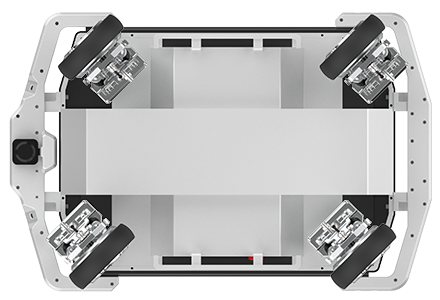

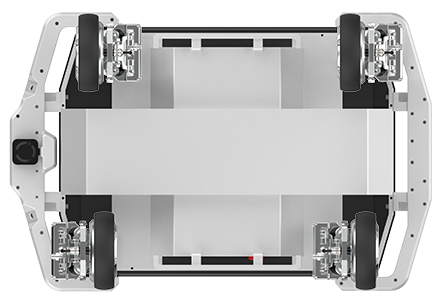

| 2D Movement (Lateral, Diagonal) | Supported | Supported |
| Protection Rating | IP67 | IP67 |
| Communication Protocol | CAN | CAN |
Mobile robotics is a game-changer for many projects. These powerful tools offer autonomy that can take over strenuous or dangerous tasks from humans.

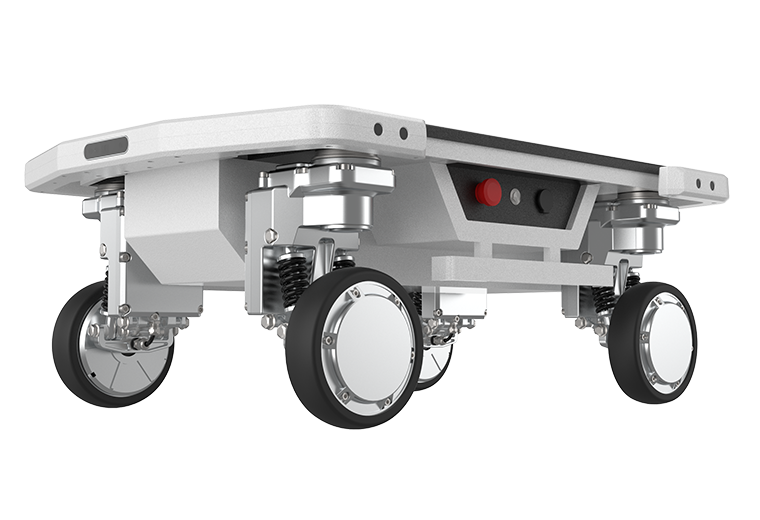

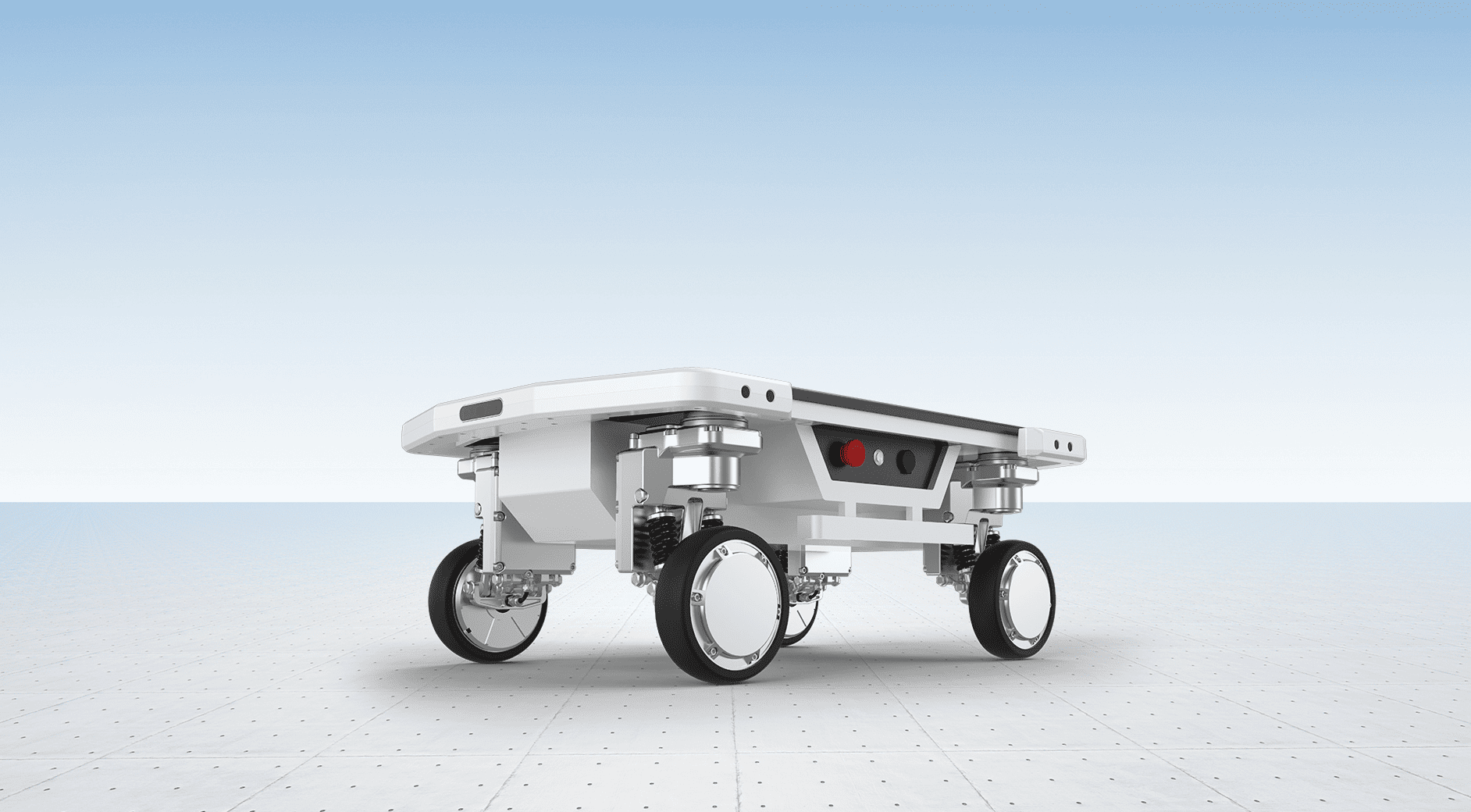

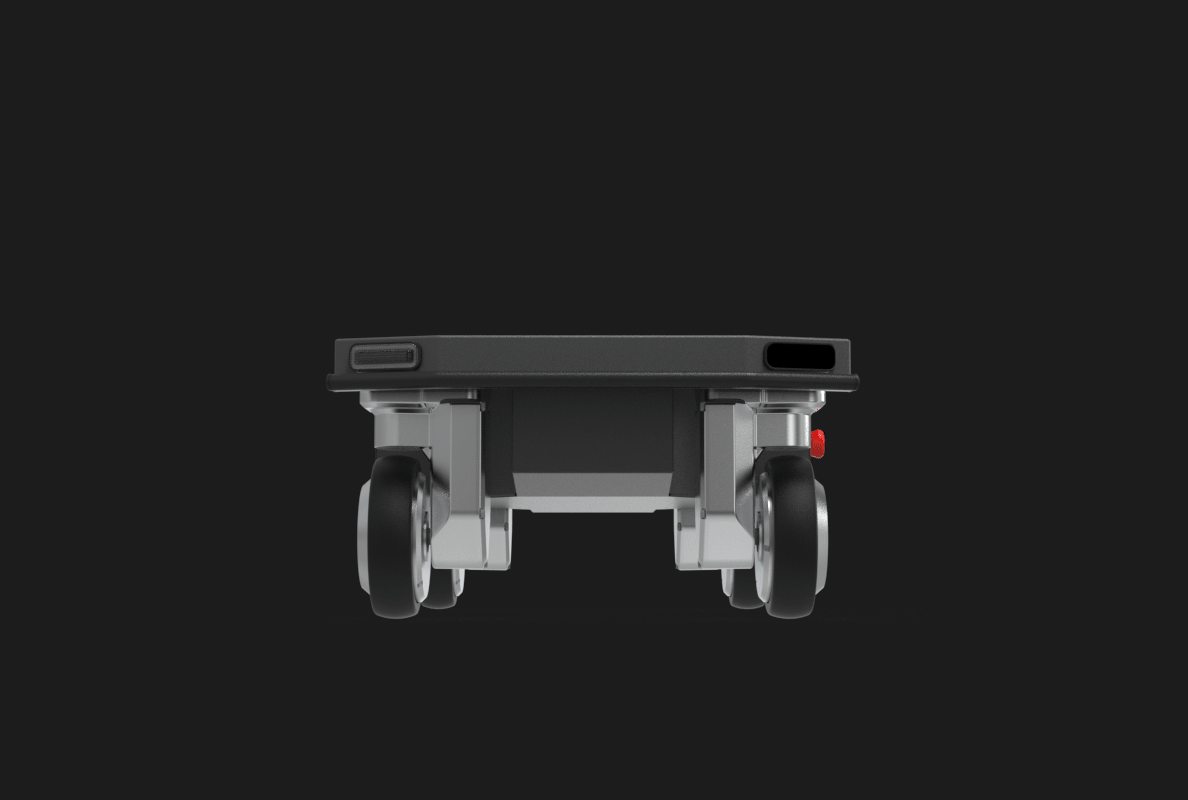

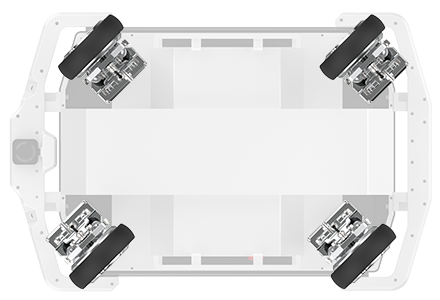

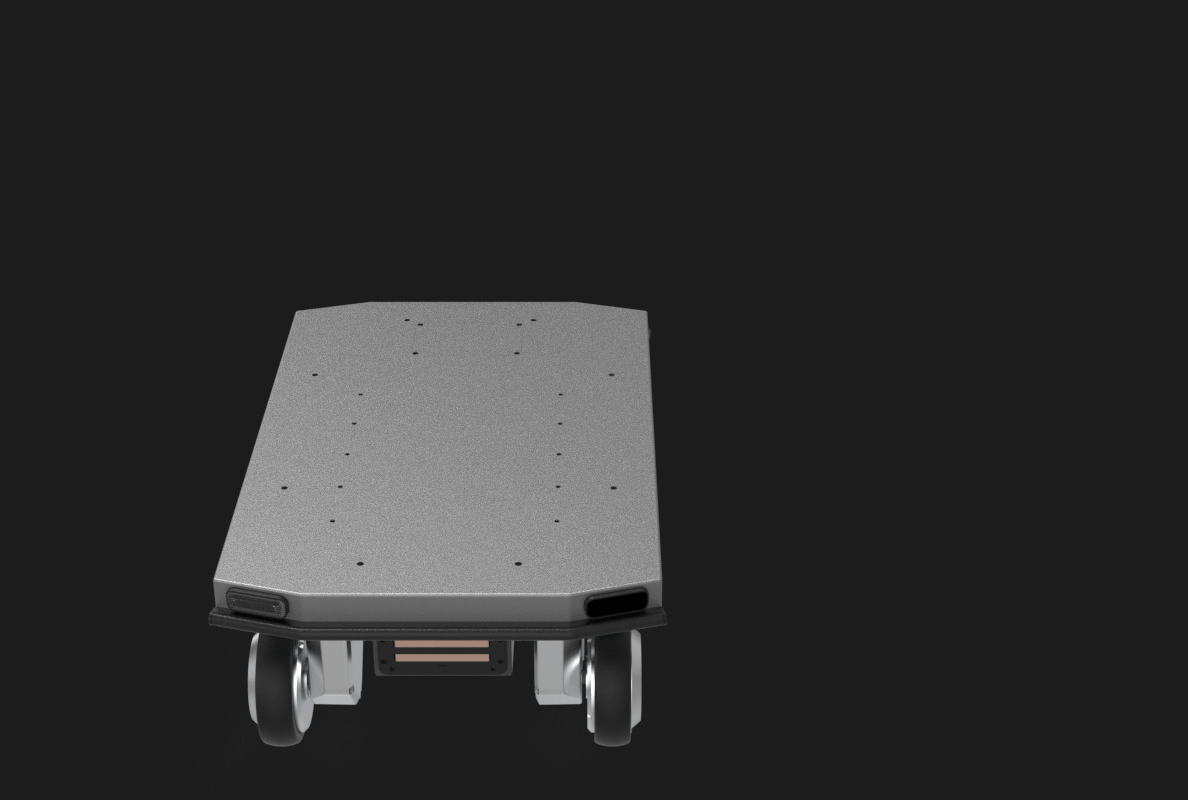

DURABLE: Built to last, meeting top industrial standards and performing well in harsh environments.SAFE: Prioritizing safety with advanced features and emergency stops for secure operation.MODULAR/FLEXIBLE: Our "One System Fits All" approach transforms setups, allowing a single module to handle various tasks and integrate different solutions.SPACE-SAVING: We optimize product footprints to maximize your floor space usage.| Parameters | |||
|---|---|---|---|
| Dimensions | 700 ×500× 280 mm | Parking | Motor parking |
| Chassis weight | 68 kg | Braking method | Motor braking |
| Steering structure | Four-wheel drive and steering | Cooling method | Air-cooled |
| Chassis material | Aluminum alloy | Communication protocol | CAN |
| Ground clearance | 110 mm | Vertical load | 200 kg |
| Wheelbase | 550 mm | Operating speed | 5 km/h |
| Track width | 380 mm | Range | 20 km |

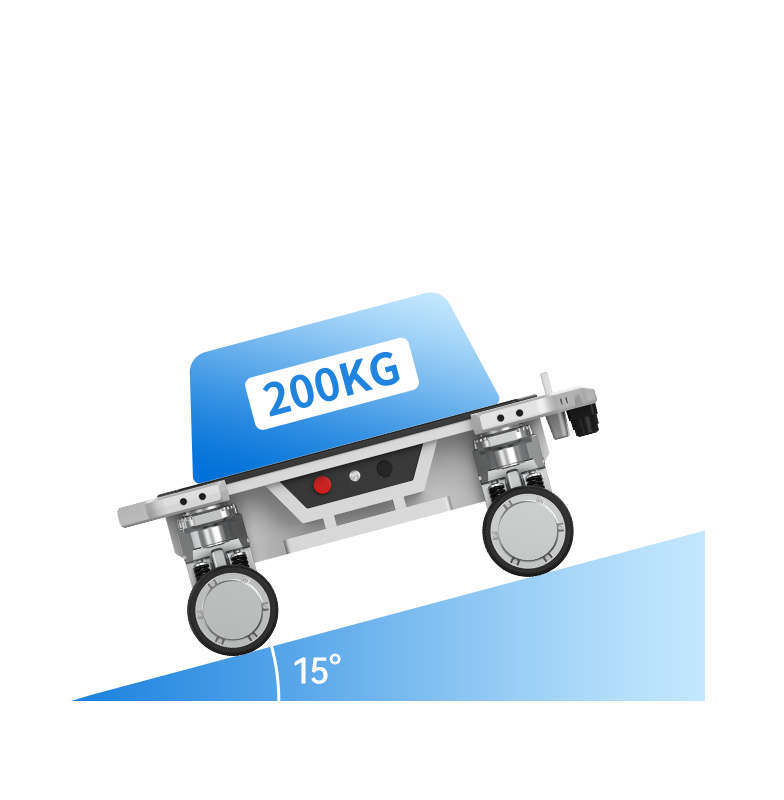

| Drive wheel diameter | 165 mm | Maximum climbing angle | 15° at full load |
| Drive motor | 200 W × 4 | Obstacle clearance height | 50 mm |
| Steering motor | 7 W | Protection rating | IP54 |
| Battery | 24 V, 30 Ah | Operating temperature | −10°C to 40°C |

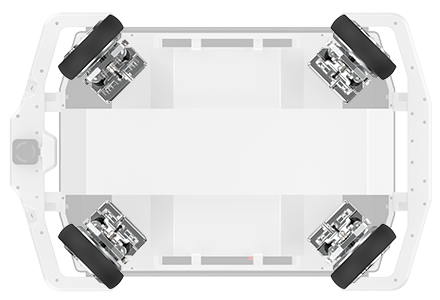

| Charging method | Manual or automatic charging | Minimum turning radius | 0° (zero-turn) |
We provide seamless maintenance for your mobile robots.
Our seasoned technical support team is devoted to enhancing your workflows.
Our standardized digital systems guarantee quick responses and minimize downtime.
Our adaptable service solutions enable swift problem-solving and rapid repairs.
Let us know what you need, and we will reply within 8 business hours!
Our focus is internal load transfer and delivering standard reliable robotic applications that provide superior ROI.
With a well-established production facility, we maintain complete control over every order from start to finish.
YEARS EXPERIENCE
Quality Control
CUSTOMERS
COUNTRIES SUPPLIED
Looking to boost your integration business or expand your distribution portfolio with cutting-edge mobile robotics solutions? Contact us to learn how you can join Tongman's global network.
Tongman is pioneering the future of collaborative and autonomous mobile robots. We invite you to be part of this exciting transformation.
Our expert team will accelerate and enhance your development through their knowledge and experience. We have all the necessary in-house resources to design, test, and prototype your machines.
We manage every aspect of engineering projects: from capturing customer requirements and budget planning to delivering complete engineering manufacturing data.
We excel in creating robust, lightweight structures and multi-axis mechanisms. Our designs prioritize long service life, easy maintenance, low manufacturing costs, and simple assembly.
We develop feature-rich, reliable, and secure intelligent control systems, complete with comprehensive system engineering documentation and GitHub version control.
We craft complex multi-layer PCBs that integrate microprocessors, digital communications, power stages, and IMU modules. The result? Highly integrated systems boasting high power and feature density.
The Importance and Diverse Applications of Mobile Robots in Modern Society
Executing precision operations, managing automated production lines, and conducting quality control inspections.
Streamlining warehouse management, providing efficient delivery services, and operating automated sorting systems.
Supporting patient care, transporting medical equipment, and performing disinfection tasks.
Facilitating automated farming, applying precision fertilization techniques, and conducting intelligent harvesting.
Delivering hotel room service, handling restaurant food orders, and offering shopping mall guidance.
Conducting patrol missions, responding to emergencies, and monitoring environmental conditions.
- Developing corner module products that integrate four major systems—drive, braking, steering, and suspension—setting new standards in domestic technological innovation
- Seamlessly combining highly integrated corner modules with AI and autonomous driving solutions, paving the way for widespread adoption of intelligent mobile robots and self-driving cars
- Specializing in the development, production, and sales of omnidirectional drive-by-wire chassis corner module systems for autonomous vehicles
More questions? We are happy to answer all your queries.
Discover our diverse business cases, ranging from warehouse operation optimization to productivity enhancement across various production environments. Our autonomous mobile robot projects showcase the transformative power of automation.
